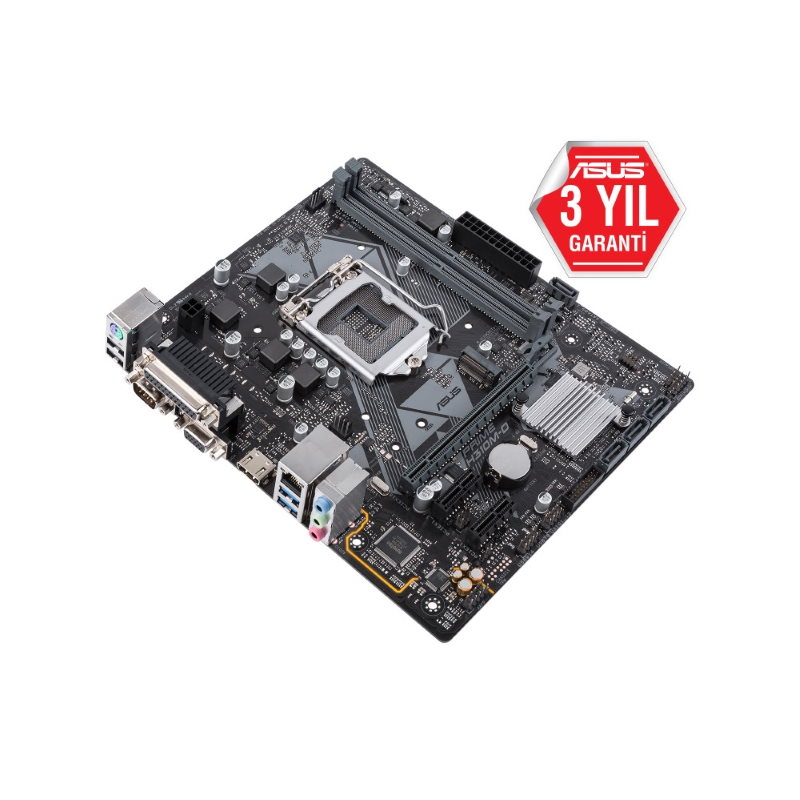

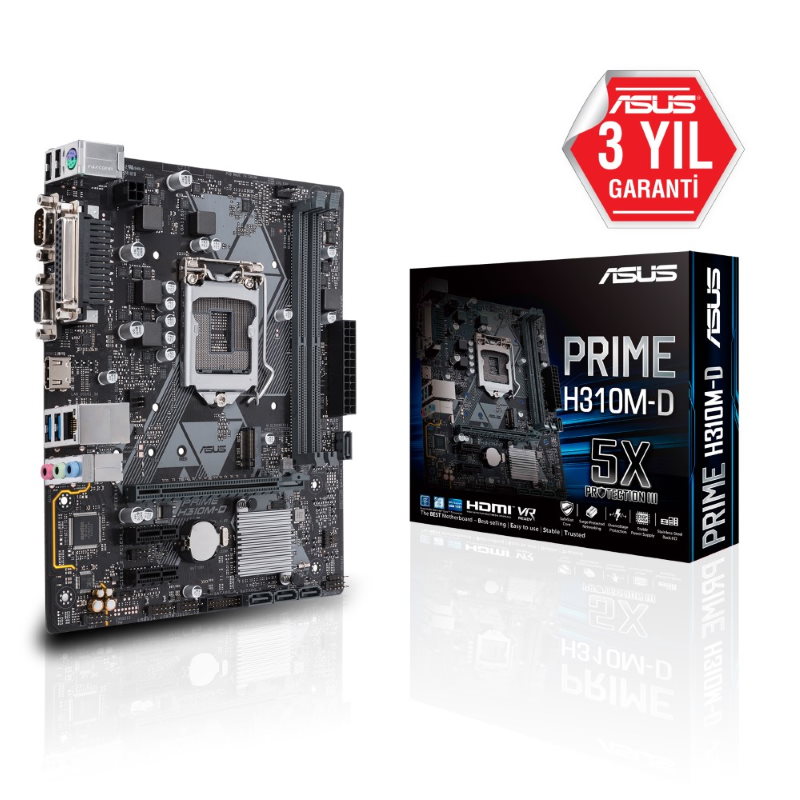

PRIME H310M-D R2.0 LED aydınlatma, DDR4 2666MHz, M.2 desteği, HDMI, SATA 6Gbps ve USB 3.1 Gen 1 ile Intel LGA-1151 mATX anakart
- Windows 7 ve Windows 10 işletim sistemlerini destekler.
- ASUS OptiMem: Gelişmiş bellek kararlılığı için sinyal bütünlüğünü korumayı sağlayan, bağlantıların dikkatli bir şekilde rotalanması.
- Fan Xpert : Üstün soğutma ve sessizlik için esnek kontroller, daha serin oyun için GPU sıcaklık tespiti.
- 5X Protection III: Tam koruma için çoklu donanım güvenliği.
- Ultra hızlı bağlantı: Lightning hızlı depolama hızları için yerel M.2 desteği
Prime
ASUS Prime 300 Serisi anakartlar, ilk bilgisayarınız için gereken sağlam temeli sağlarken, beklentilerinizle artan tonlarca ekstrayla sunulur. En yeni 8. Nesil Intel® Core™ işlemcilere yerleştirilmiş iyiliklerle ASUS tasarım ve mühendisliğini birleştirdik, böylece içerisinde otomatik sistem ayarlama, geniş soğutma kontrolleri, sizi saran yerleşik ses ve ASUS Fan Genişleme Kartı için destek gibi endüstri lideri teknolojilerden yararlanabilirsiniz. ASUS Prime 300 ile akıllıca ve basit şekilde kurun.
| Model | PRIME H310M-D R2.0 |
| CPU | Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list |
| Yonga Seti | Intel® H310 |
| Bellek | 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors. |
| Grafik | Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/D-Sub ports – Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz – Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
| Genişletme Yuvaları | 1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 2 x PCIe 2.0 x1 |
| Depolama | Intel® H310 Chipset : 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1 4 x SATA 6Gb/s port(s), gray, |
| LAN | Realtek® RTL8111H, 1 x Gigabit LAN ASUS LAN Guard |
| Ses | Realtek® ALC887 8-Channel High Definition Audio CODEC – Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : – LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path. – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals – Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB Portları | Intel® H310 Chipset : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) Intel® H310 Chipset : 6 x USB 2.0/1.1 port(s) (4 at back panel, , 2 at mid-board) |
| Ayrıcalıklı Özellikler | ASUS 5X Protection III : – ASUS SafeSlot Core: Fortified PCIe Slot prevents damage – ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! – ASUS Overvoltage Protection: World-class circuit-protecting power design – ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! – ASUS DIGI+ VRM: 4 Phase digital power design ASUS OptiMem： – Optimem (Improved DDR4 stability) ASUS EPU : – EPU ASUS Exclusive Features : – AI Suite 3 – Ai Charger – PC Cleaner ASUS Quiet Thermal Solution : – Stylish Fanless Design Heat-sink solution – ASUS Fan Xpert ASUS EZ DIY : – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode ASUS Q-Design : – ASUS Q-DIMM M.2 Onboard(The latest transfer technologies with up to 10Gb/s data transfer speeds) |

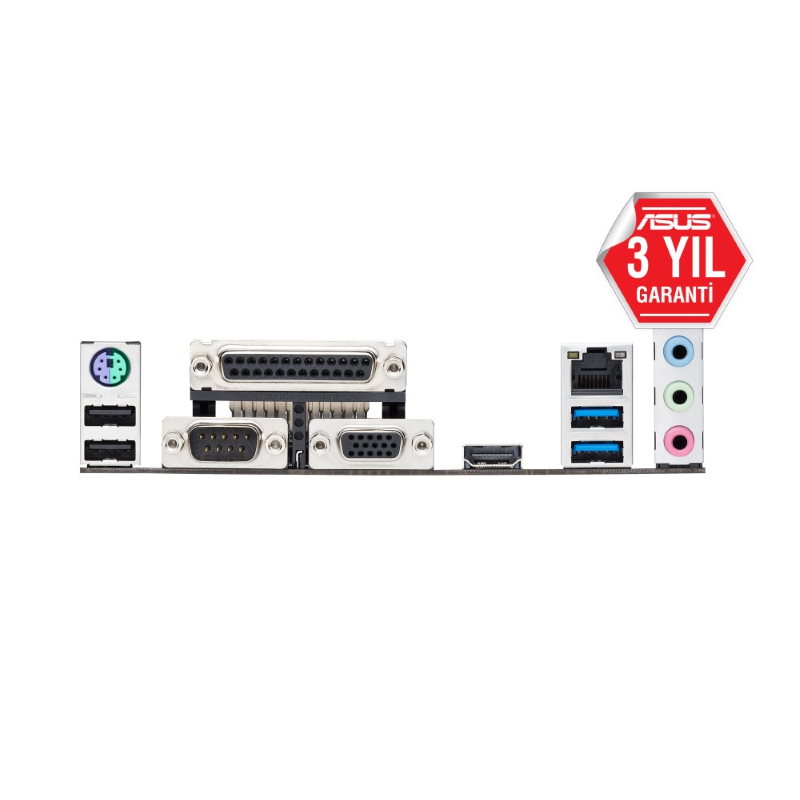

| Arka Giriş/Çıkış Portları | 1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 (blue) Type-A up to 5Gbps 4 x USB 2.0 1 x COM port(s) 1 x LPT port 3 x Audio jack(s) |
| Dahili Giriş/Çıkış Portları | 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector |
| Aksesuarlar | User’s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Anchor 1 x SCD |
| Yönetilebilirlik | WOL by PME, PXE |
| İşletim Sistemi | Windows® 10 64-bit |
| Form Faktörü | mATX Form Factor 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm ) |
