DONANIM ÖZELLİKLERİ | |
---|---|
İşlemci | Broadcom (1 GHz, 2 cores) |

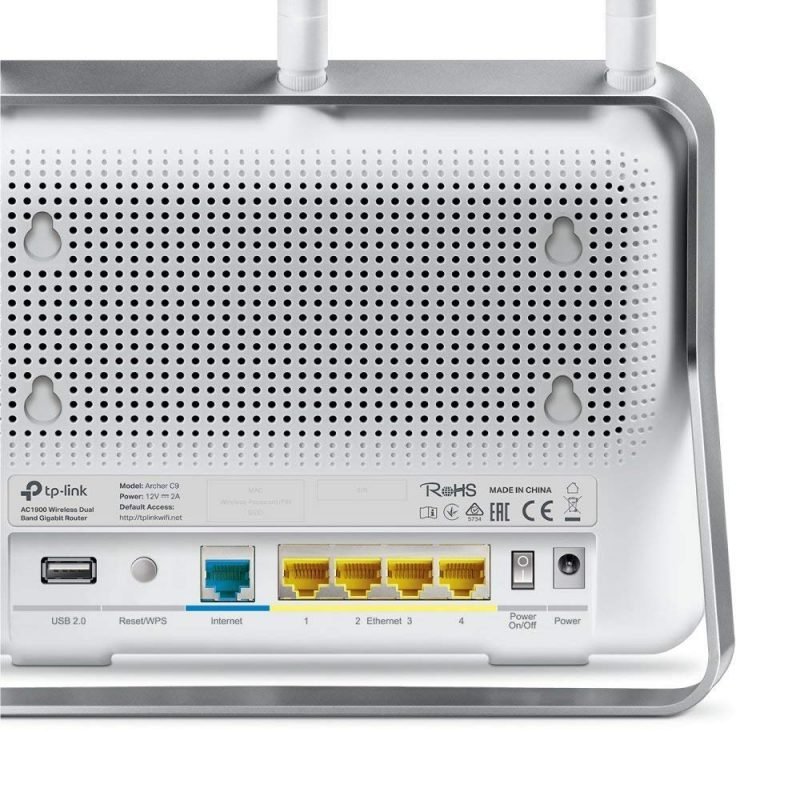

Arabirim | 4 10/100/1000Mbps LAN Portları 1 10/100/1000Mbps WAN Portu 1 USB 3.0 Portu + 1 USB 2.0 Portu |
Buton | WPS/Reset Butonu Kablosuz Açma/Kapama Butonu Güç Açma/Kapama Butonu |
Harici Güç Kaynağı | 12V/3.3A |
Flash | 16MB |
Kablosuz Standartları | |
IEEE Standartları | |
Boyutlar ( W X D X H ) | 8.7 X 3.4 X 6.6 in. (221 X 86 X 168.5mm) |
Anten | 3 dual band çıkarılabilir antenler |
KABLOSUZ ÖZELLİKLERİ | |
---|---|
Kablosuz Standartlar | IEEE 802.11ac/n/a 5GHz IEEE 802.11b/g/n 2.4GHz |
Frekans | 2.4GHz ve 5GHz |
Bağlantı Hızı | 5GHz: 1300Mbps’e kadar 2.4GHz: 600Mbps’e kadar |
Alıcı Hassasiyeti | 5GHz: 11a 6Mbps: -94dBm 11a 54Mbps: -76dBm 11ac HT20: -68dBm 11ac HT40: -64dBm 11ac HT80: -60dBm 2.4GHz 11g 54M: -77dBm 11n HT20: -73dBm 11n HT40: -71dBm |
İletim Gücü | CE: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm |
Kablosuz Modları | WiFi Router |
Kablosuz Fonksiyonlar | Kablosuz Radyo Etkinleştirme/Devre Dışı Bırakma, WDS Bridge, WMM, Kablosuz İstatistikler |
Kablosuz Güvenlik | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 şifreleme |
Misafir Ağ | 2.4GHz için misafir ağ × 1 5GHz için misafir ağ × 1 |
YAZILIM ÖZELLİKLERİ | |
---|---|
Quality of Service | WMM, Bandwidth Control |
WAN Türü | Dynamic IP/Static IP/PPPoE/ PPTP(Dual Access)/L2TP(Dual Access)/BigPond |
Yönetim | Access Control Local Management Remote Management |
DHCP | Server, Client, DHCP Client List, Address Reservation |
Port Yönlendirme | Virtual Server, Port Triggering, UPnP, DMZ |
Dinamik DNS | DynDns, Comexe, NO-IP |
VPN Pass-Through | PPTP, L2TP, IPSec |
Erişim Kontrolü | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Güvenliği | DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
Protokoller | Supports IPv4 and IPv6 |
USB Paylaşım | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
Misafir Ağ | 2.4GHz guest network × 1 5GHz guest network × 1 |
DİĞERLERİ | |
---|---|
Sertifika | CE, FCC, RoHS |
Paket İçeriği | AC 1900 Wireless Dual Band Gigabit Router Archer C9 3 detachable antennas Power supply unit Resource CD Ethernet Cable Quick Installation Guide |
Sistem Gereksinimleri | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux |
Ortam | Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
