| DONANIM ÖZELLİKLERİ | |
|---|---|
| Arabirim | Gigabit Ethernet (RJ-45) Port *1（Support IEEE802.3at PoE） |
| Buton | Reset, FIT/FAT |
| Güç Kaynağı | PoE or external 12VDC/1.5A power supply |
| Güç Tüketimi | 12.7W |
| Boyutlar ( W X D X H ) | 7.1 × 7.1 × 1.9 in. (180*180*47.5mm) |
| Anten Tipi | 2.4GHz 3*4dBi 5GHz 3*4Bi |
| Montaj | Ceiling /Wall Mounting (Kits included) |
| Fiziksel Güvenlik Kilidi | Kensington Lock Slot |
| İzleme | Yes |
| KABLOSUZ ÖZELLİKLERİ | |
|---|---|
| Kablosuz Standartlar | IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a |
| Frekans | 2.4GHz and 5 GHz |
| İletim Gücü | CE: <19dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm(2.4GHz) <27dBm(5GHz) |
| YAZILIM ÖZELLİKLERİ | |
|---|---|
| Wireless Functions | “Fast Roaming(support 802.11k protocol)” in Software Features in FIT mode” |
| Wireless Security | Guest Network Wireless MAC Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK |
| FAT MODUNDA YAZILIM ÖZELLİĞİ | |
|---|---|
| Kablosuz Fonksiyonlar | Multiple SSIDs (Up to 16 SSIDs) Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) WDS Maximum Client Connections Setting |
| Kablosuz Güvenlik | Guest Network Wireless MAC Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK |
| FIT MODUNDA YAZILIM ÖZELLİKLERİ | |
|---|---|
| Kablosuz Fonksiyonlar | Multiple SSIDs Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) WMM Reboot Schedule Wireless Statistics based on SSID/AP/Client Load Balance Band Steering |
| Kablosuz Güvenlik | Captive Portal Authentication MAC Address Authentication Wireless Isolation Between Clients SSID to VLAN Mapping WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK |
| DİĞERLERİ | |
|---|---|
| Sertifika | CE, FCC, RoHS |

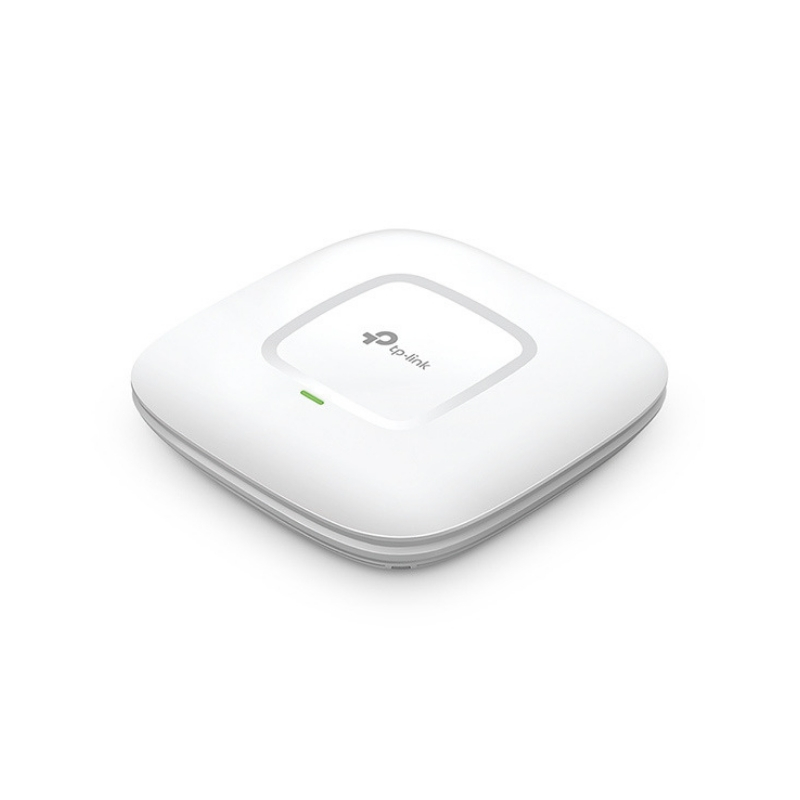

| Paket İçeriği | AC 1750 Wireless Dual Band Gigabit Ceiling Mount Access Point CAP1750 Power Adapter Mounting Kits, Installation Guide |
| Sistem Gereksinimleri | Microsoft Windows 10/8/7/Vista/XP |
| Ortam | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
